Standard Set Mini Plates 2.0mm | AMAAX INTERNATIONAL – ISO 13485:2016
The Standard Set Mini Plates 2.0mm is a comprehensive maxillofacial fixation system designed for craniofacial, mandibular, and orthopedic trauma procedures. The set includes a complete range of Titanium 2.0mm mini plates, self-tapping screws, precision surgical instruments, drill bits, and sterilization accessories, providing surgeons with everything required for efficient fracture fixation and reconstructive procedures. Manufactured to the highest quality standards, the system ensures precision, durability, and reliable surgical performance.
Key Features
- Complete 2.0mm Mini Plate Fixation System
- Titanium mini plates and self-tapping screws
- Comprehensive instrument set included
- Precision surgical instruments
- Suitable for maxillofacial and craniofacial surgery
- Reusable and fully autoclavable instruments
- Sterilization container included
- High corrosion resistance
- OEM & Private Label services available
- ISO 13485:2016 quality manufacturing
Material
- Titanium (Plates & Screws)
- AISI 420 German Stainless Steel (Instruments)
Package Includes
+------------+---------------------------------------------------------------------------------------------------------------+-----+
| SKU Code | Product | Qty |
+------------+---------------------------------------------------------------------------------------------------------------+-----+
| 436-860-04 | Mini Plate Straight 2.0mm, Titanium, 4 Holes, Profile 1.0mm | 5 |
| 436-860-06 | Mini Plate Straight 2.0mm, Titanium, 6 Holes, Profile 1.0mm | 5 |
| 436-860-08 | Mini Plate Straight 2.0mm, Titanium, 8 Holes, Profile 1.0mm | 5 |
| 436-860-16 | Mini Plate Straight 2.0mm, Titanium, 16 Holes, Profile 1.0mm | 5 |
| 436-862-04 | Mini Plate Straight 2.0mm, Titanium, 4 Holes, 9.0mm Web, Profile 1.0mm | 5 |
| 436-862-06 | Mini Y-Plate 2.0mm, Titanium, 5 Holes, 12.0mm Web, 6.0×6.0mm Y-Bar, Profile 1.0mm | 5 |
| 436-862-05 | Mini Plate Straight 2.0mm, Titanium, 6 Holes, 12.0mm Web, Profile 1.0mm | 5 |
| 436-863-05 | Mini Y-Plate 2.0mm, Titanium, 5 Holes, 6.0×6.0mm Y-Bar, Profile 1.0mm | 5 |
| 436-865-04 | Mini T-Plate 2.0mm, Titanium, 4 Holes, Narrow, Profile 1.0mm | 5 |
| 436-865-05 | Mini Y-Plate 2.0mm, Titanium, 5 Holes, 6.0mm Web, 6.0×6.0mm Y-Bar, Profile 1.0mm | 5 |
| 436-867-04 | Mini T-Plate 2.0mm, Titanium, 4 Holes, 12.0mm Web, Narrow, Profile 1.0mm | 5 |
| 436-868-06 | Mini T-Plate 2.0mm, Titanium, 6 Holes, 7.5mm Web, Narrow, Profile 1.0mm | 5 |
| 436-869-06 | Mini T-Plate 2.0mm, Titanium, 6 Holes, Narrow, Profile 1.0mm | 5 |
| 436-874-04 | Mini L-Plate 2.0mm, Titanium, 4 Holes, Right, Profile 1.0mm | 5 |
| 436-874-14 | Mini L-Plate 2.0mm, Titanium, 4 Holes, Left, Profile 1.0mm | 5 |
| 436-877-04 | Mini L-Plate 2.0mm, Titanium, 4 Holes, 12.0mm Web, Left, Profile 1.0mm | 5 |
| 436-877-14 | Mini L-Plate 2.0mm, Titanium, 4 Holes, 12.0mm Web, Right, Profile 1.0mm | 5 |
| 436-872-05 | Mini T-Plate 2.0mm, Titanium, 5 Holes, 12.0mm Web, 100°, Positive, Wide, Profile 1.0mm | 5 |
| 436-873-05 | Mini T-Plate 2.0mm, Titanium, 5 Holes, 12.0mm Web, 100°, Negative, Wide, Profile 1.0mm | 5 |
| 436-870-06 | Mini T-Plate 2.0mm, Titanium, 6 Holes, Wide, Profile 1.0mm | 5 |
| 436-871-05 | Mini T-Plate 2.0mm, Titanium, 5 Holes, 12.0mm Web, Wide, Profile 1.0mm | 5 |
| 436-878-04 | Mini T-Plate 2.0mm, Titanium, 6 Holes, Double, Narrow, Profile 1.0mm | 5 |
| 436-889-08 | Orbital Plate 2.0mm, Titanium, 8 Holes, Profile 0.6mm | 5 |
| 436-889-10 | Orbital Plate 2.0mm, Titanium, 10 Holes, Profile 0.6mm | 5 |
| 436-889-12 | Orbital Plate 2.0mm, Titanium, 12 Holes, Profile 0.6mm | 5 |
| 436-852-05 | Mini Screw with Full Thread, Titanium, Ø2.0mm × 5.0mm, Self-Tapping | 10 |
| 436-852-07 | Mini Screw with Full Thread, Titanium, Ø2.0mm × 7.0mm, Self-Tapping | 10 |
| 436-852-09 | Mini Screw with Full Thread, Titanium, Ø2.0mm × 9.0mm, Self-Tapping | 10 |
| 436-852-11 | Mini Screw with Full Thread, Titanium, Ø2.0mm × 11.0mm, Self-Tapping | 10 |
| 436-852-13 | Mini Screw with Full Thread, Titanium, Ø2.0mm × 13.0mm, Self-Tapping | 10 |
| 436-852-15 | Mini Screw with Full Thread, Titanium, Ø2.0mm × 15.0mm, Self-Tapping | 10 |
| 436-852-17 | Mini Screw with Full Thread, Titanium, Ø2.0mm × 17.0mm, Self-Tapping | 10 |
| 436-853-05 | Mini Emergency Screw with Full Thread, Titanium, Ø2.3mm × 5.0mm, Self-Tapping | 10 |
| 436-853-07 | Mini Emergency Screw with Full Thread, Titanium, Ø2.3mm × 7.0mm, Self-Tapping | 10 |
| 988-650-02 | Sterilization Container, 310 × 190 × 65mm | 1 |
| 436-950-20 | Rack for Instruments | 1 |
| 436-951-20 | Rack for Plates and Screws, Titanium | 1 |
| 433-545-18 | Wire Cutting Plier, 18cm (7"), Curved, Double Articulated, Hard Wires up to Ø1.6mm, Soft Wires up to Ø2.0mm | 1 |
| 436-545-13 | Flat Nose Pliers, Serrated, 14.5cm | 1 |
| 436-820-12 | ADERER Plate Bending Plier, 12cm (4¾"), Modified, for Micro Plate | 1 |
| 436-824-05 | Depth Gauge, 15cm (6"), Up to 50.0mm | 1 |
| 436-828-10 | Screw Driver, 18cm (7"), Turnable, Self-Retaining, for Titanium Cross Head Screws Ø2.0mm | 1 |
| 436-830-50 | Drill Bit Ø1.5mm, Total Length 50.0mm, Twist Length 7.0mm, Useable Length 7.0mm, Stryker Coupling | 10 |
| 436-831-20 | Drill Bit Ø1.5mm, Total Length 50.0mm, Twist Length 20.0mm, Useable Length 20.0mm, Stryker Coupling | 10 |
| 436-972-15 | Titanium Plates and Screws Holding Forceps, 15cm (6"), Angled | 1 |
+------------+---------------------------------------------------------------------------------------------------------------+-----+
Reference Numbers
Amaax International : 436-860-04, 436-860-06, 436-860-08, 436-860-16, 436-862-04, 436-862-06, 436-862-05, 436-863-05, 436-865-04, 436-865-05, 436-867-04, 436-868-06, 436-869-06, 436-874-04, 436-874-14, 436-877-04, 436-877-14, 436-872-05, 436-873-05, 436-870-06, 436-871-05, 436-878-04, 436-889-08, 436-889-10, 436-889-12, 436-852-05, 436-852-07, 436-852-09, 436-852-11, 436-852-13, 436-852-15, 436-852-17, 436-853-05, 436-853-07, 988-650-02, 436-950-20, 436-951-20, 433-545-18, 436-545-13, 436-820-12, 436-824-05, 436-828-10, 436-830-50, 436-831-20, 436-972-15, 436-812-02
Dimeda : 36.860.04, 36.860.06, 36.860.08, 36.860.16, 36.862.04, 36.862.06, 36.862.05, 36.863.05, 36.865.04, 36.865.05, 36.867.04, 36.868.06, 36.869.06, 36.874.04, 36.874.14, 36.877.04, 36.877.14, 36.872.05, 36.873.05, 36.870.06, 36.871.05, 36.878.04, 36.889.08, 36.889.10, 36.889.12, 36.852.05, 36.852.07, 36.852.09, 36.852.11, 36.852.13, 36.852.15, 36.852.17, 36.853.05, 36.853.07, 88.650.02, 36.950.20, 36.951.20, 33.545.18, 36.545.13, 36.820.12, 36.824.05, 36.828.10, 36.830.50, 36.831.20, 36.972.15, 36.812.02
Note: Cross-reference numbers are provided for product identification and comparison purposes only.
Applications
Suitable for:
- Maxillofacial Surgery
- Craniofacial Surgery
- Mandibular Fracture Fixation
- Midface Fracture Fixation
- Oral and Maxillofacial Surgery
- Trauma Surgery
- Reconstructive Surgery
- Bone Plate and Screw Fixation
Sterilization
Compatible with standard hospital sterilization procedures, including steam autoclave sterilization.
Quality Assurance
Each Standard Set Mini Plates 2.0mm is inspected for:
- Dimensional accuracy
- Plate and screw compatibility
- Instrument alignment
- Surface finish quality
- Corrosion resistance
- Functional performance
- Material integrity
- Final quality inspection before shipment
Warranty
This product is backed by a 3-Year Warranty against manufacturing defects under normal handling and storage conditions.

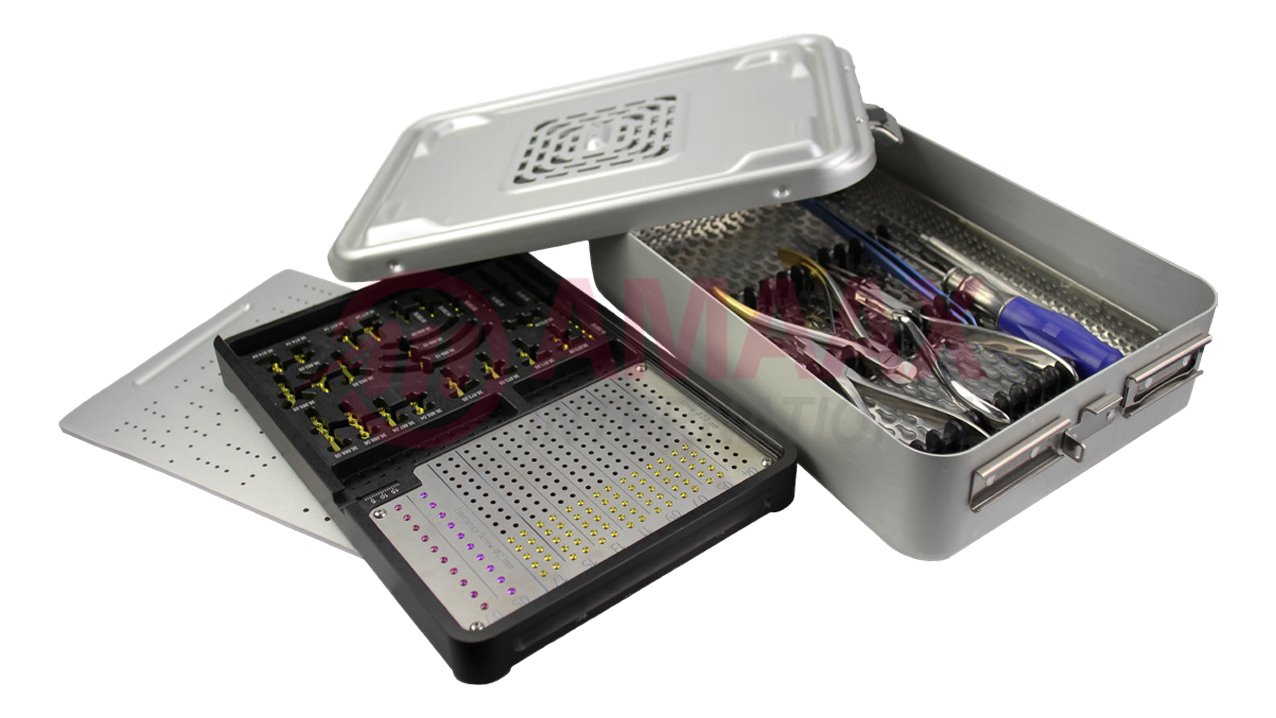

Packaging
- Complete sterilization container
- Rack for instruments
- Rack for titanium plates and screws
- Protective medical-grade packaging
- OEM private label packaging available
- Bulk export packaging available
