Small Fragment Instruments Set

Small Fragment Instruments Set | AMAAX INTERNATIONAL – ISO 13485:2016

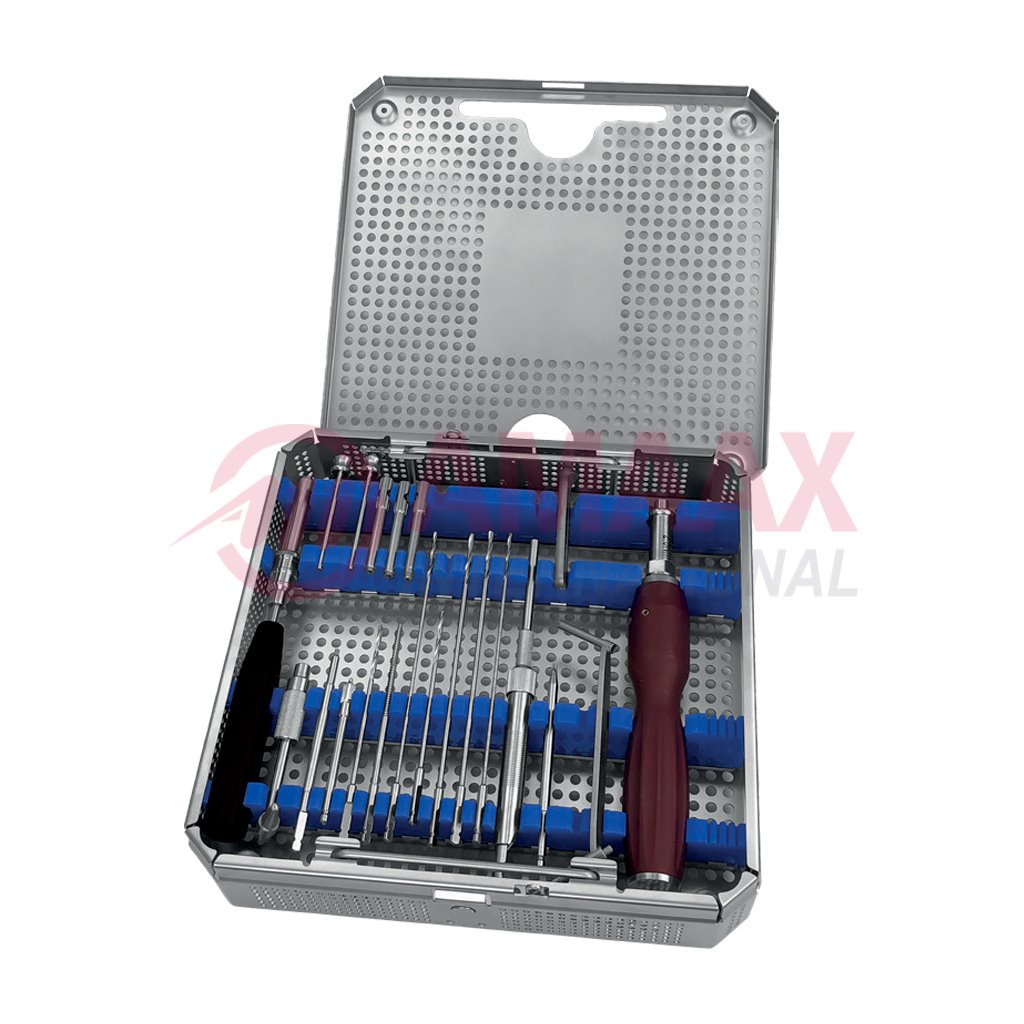

The Small Fragment Instruments Set is a precision orthopedic surgical instrument system designed for small fragment fracture fixation procedures. This comprehensive set includes essential instruments required for drilling, measuring, reduction, and fixation during orthopedic trauma surgeries involving small bone fragments. Manufactured from AISI 420 German Stainless Steel, the instruments provide excellent durability, corrosion resistance, and dependable reusable performance.

---

Key Features

• Complete small fragment orthopedic instrument system
• Designed for small fragment fracture fixation procedures
• Suitable for trauma and reconstructive orthopedic surgeries
• Precision instruments for drilling, measuring, and fixation
• Ergonomic design for improved surgical control
• High-strength and corrosion-resistant construction
• Manufactured from AISI 420 German Stainless Steel
• Fully autoclavable and reusable
• Reliable performance in orthopedic applications
• OEM and private label manufacturing available

---

Material

AISI 420 German Stainless Steel

---

Package Includes

1 × Small Fragment Instruments Set

+----------------+-----+-------------------------------+
| Code           | Qty | Description                   |
+----------------+-----+-------------------------------+
| 433-000-21     |  1  | Tray                          |
+----------------+-----+-------------------------------+
| 433-625-35     |  1  | Screwdriver for holding       |
|                |     | sleeve for standard screws    |
|                |     | Ø3.5/4.0mm                    |
+----------------+-----+-------------------------------+
| 433-625-00     |  1  | Holding sleeve for            |
|                |     | 433-625-35                    |
+----------------+-----+-------------------------------+
| 433-866-00     |  1  | T handle with quick           |
|                |     | coupling for AO coupling      |
+----------------+-----+-------------------------------+
| 433-629-25     |  1  | Screwdriver blades for        |
|                |     | standard screws Ø3.5/4.0mm    |
+----------------+-----+-------------------------------+
| 433-822-20     |  1  | Countersink for screws        |
|                |     | Ø3.5/4.0mm                    |
+----------------+-----+-------------------------------+
| 433-830-35     |  1  | Tap for cortical screws       |
|                |     | Ø3.5mm, thread pitch 1.25mm   |
+----------------+-----+-------------------------------+
| 433-356-25     |  2  | Drill bit for cortical        |
|                |     | screws Ø3.5mm and             |
|                |     | cancellous screws Ø4.0mm      |
+----------------+-----+-------------------------------+
| 433-357-28CA   |  2  | Drill bit calibrated for      |
|                |     | cortical screws Ø3.5mm        |
+----------------+-----+-------------------------------+
| 433-357-20CA   |  2  | Drill bit calibrated for      |
|                |     | cortical screws Ø2.7mm        |
+----------------+-----+-------------------------------+
| 433-828-01     |  1  | Depth gauge for screws up     |
|                |     | to 60.0mm, for screws         |
|                |     | Ø2.7/3.5/4.0mm                |
+----------------+-----+-------------------------------+
| 433-890-35     |  1  | Universal drill guide for     |
|                |     | neutral and compression       |
|                |     | position, for tap Ø3.5mm      |
|                |     | and drill bit Ø2.5mm          |
+----------------+-----+-------------------------------+
| 433-629-27     |  2  | Screwdriver blades for        |
|                |     | locking screws Ø2.7/3.5mm     |
+----------------+-----+-------------------------------+
| 433-863-00     |  1  | Torque limiting attachment    |
|                |     | 1.5Nm with quick coupling     |
|                |     | for AO coupling               |
+----------------+-----+-------------------------------+
| 433-473-16     |  2  | Centering sleeve for          |
|                |     | Kirschner wires Ø1.6mm x      |
|                |     | 15.0cm                        |
+----------------+-----+-------------------------------+
| 433-476-28     |  2  | Threaded drill sleeve for     |
|                |     | Ø2.8mm drill bit              |
|                |     | 433-357-28CA                  |
+----------------+-----+-------------------------------+
| 433-476-20     |  2  | Threaded drill sleeve for     |
|                |     | Ø2.0mm drill bit              |
|                |     | 433-357-20CA                  |
+----------------+-----+-------------------------------+
| 433-473-00     |  1  | Direct measuring device for   |
|                |     | use with threaded drill       |
|                |     | sleeve Ø2.8 / centering       |
|                |     | sleeve Ø1.6mm                 |
+----------------+-----+-------------------------------+
| 433-420-16     |  4  | Kirschner wire trocar point,  |
|                |     | round shaft Ø1.6mm x          |
|                |     | 15.0cm                        |
+----------------+-----+-------------------------------+
| 433-839-09     |  1  | Screw forceps                 |
+----------------+-----+-------------------------------+

Total: 20 items, saare shamil hain.

---

Reference Numbers

Dimeda : 33.000.21, 33.625.35, 33.625.00, 33.866.00, 33.629.25, 33.822.20, 33.830.35, 33.356.25, 33.357.28CA, 33.357.20CA, 33.828.01, 33.890.35, 33.629.27, 33.863.00, 33.473.16, 33.476.28, 33.476.20, 33.473.00, 33.420.16, 33.839.09, 36.00.016 Note: Cross-reference numbers are provided for product identification and comparison purposes only.

---

Applications

• Small fragment fracture fixation
• Orthopedic trauma surgery
• Hand and foot bone fixation
• Radius and ulna fracture procedures
• Small bone reconstruction
• Plate and screw fixation
• General orthopedic surgery

---

Sterilization

This instrument set is supplied non-sterile and must be sterilized according to approved hospital sterilization procedures before surgical use.

---

Quality Assurance

Each Small Fragment Instruments Set undergoes:

• Raw material verification
• Precision machining inspection
• Dimensional accuracy testing
• Functional performance testing
• Surface finish evaluation
• Corrosion resistance testing
• Final quality inspection before shipment

---

Warranty

AMAAX INTERNATIONAL provides a 3-Year Warranty against manufacturing defects under normal storage and handling conditions.

---

Packaging

• Medical-grade protective packaging
• Sterilizable instrument storage case
• Batch traceability labeling
• OEM and private label packaging available

---
