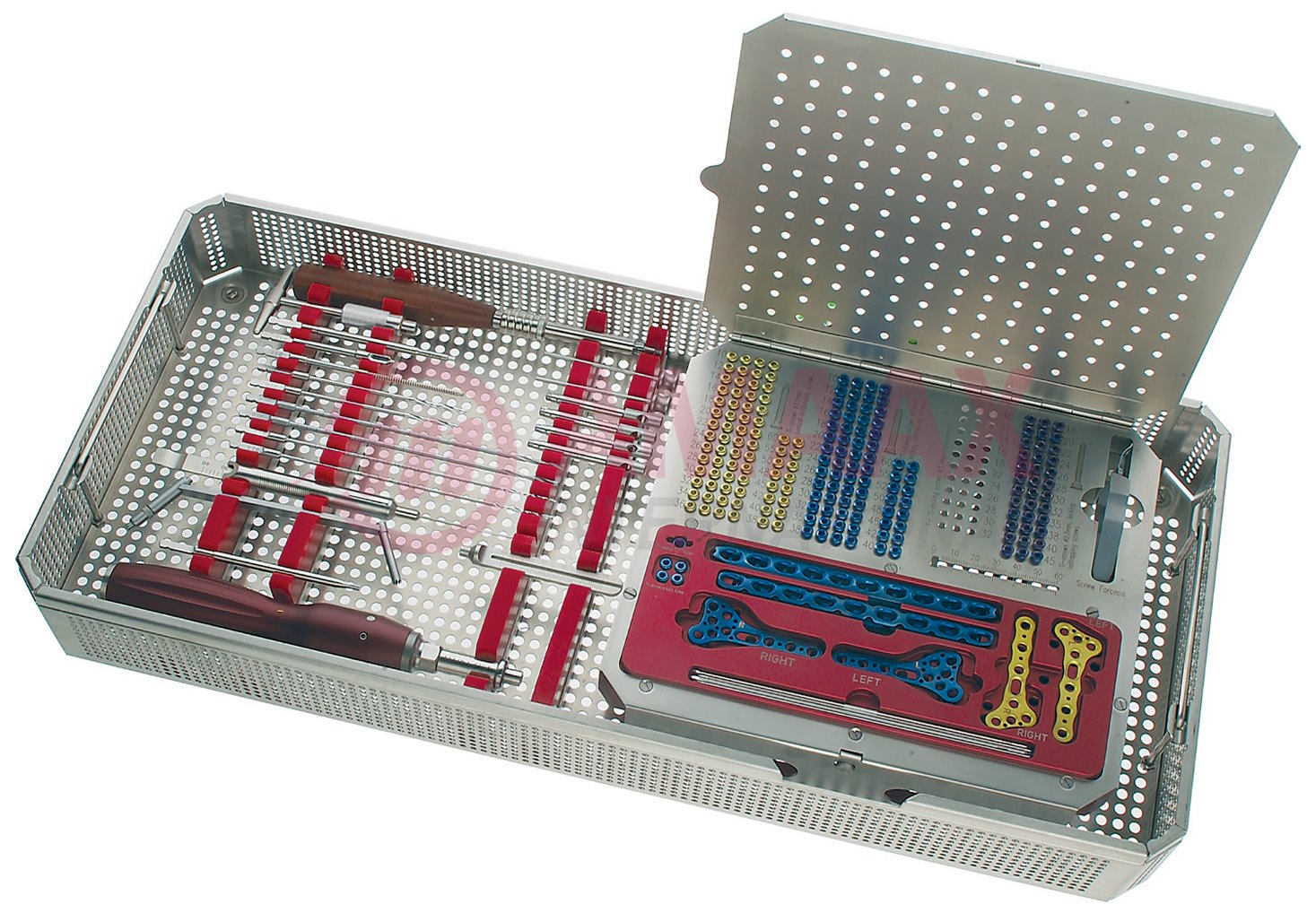

Small Fragment Implants and Instruments Set

Small Fragment Implants and Instruments Set | AMAAX INTERNATIONAL – ISO 13485:2016

The Small Fragment Implants and Instruments Set is a complete orthopedic fixation system designed for the treatment of small bone fractures and trauma-related orthopedic procedures. This comprehensive set combines precision-manufactured implants and surgical instruments required for fracture reduction, drilling, measurement, and fixation. The implant components are manufactured from Titanium, while the reusable instruments are made from AISI 420 German Stainless Steel, providing excellent strength, biocompatibility, corrosion resistance, and reliable clinical performance.

---

Key Features

• Complete small fragment implant and instrument system

• Designed for small bone fracture fixation procedures

• Includes implants and reusable surgical instruments

• Suitable for trauma and reconstructive orthopedic surgery

• Precision-engineered plates, screws, and instruments

• Provides accurate fixation and stable bone support

• Implant components manufactured from Titanium

• Instruments manufactured from AISI 420 German Stainless Steel

• Corrosion resistant and durable construction

• OEM and private label manufacturing available

---

Material

Titanium (Implants)
AISI 420 German Stainless Steel (Instruments)

---

Package Includes

1 × Small Fragment Implants and Instruments Set

+----------------+-----+-------------------------------+
| Code           | Qty | Description                   |
+----------------+-----+-------------------------------+
| 433-000-20     |  1  | Container Tray                |
+----------------+-----+-------------------------------+
| 433-625-35     |  1  | Screwdriver for holding       |
|                |     | sleeve for standard screws    |
|                |     | Ø3.5/4.0mm                    |
+----------------+-----+-------------------------------+
| 433-625-00     |  1  | Holding sleeve for            |
|                |     | 433-625-35                    |
+----------------+-----+-------------------------------+
| 433-866-00     |  1  | T handle with quick           |
|                |     | coupling for AO coupling      |
+----------------+-----+-------------------------------+
| 433-629-25     |  1  | Screwdriver blades for        |
|                |     | standard screws Ø3.5/4.0mm    |
+----------------+-----+-------------------------------+
| 433-822-20     |  1  | Countersink for screws        |
|                |     | Ø3.5/4.0mm                    |
+----------------+-----+-------------------------------+
| 433-830-35     |  1  | Tap thread pitch 1.25mm,      |
|                |     | for cortical screws Ø3.5mm    |
+----------------+-----+-------------------------------+
| 433-356-25     |  2  | Drill bit for cortical        |
|                |     | screws Ø3.5mm and             |
|                |     | cancellous screws Ø4.0mm      |
+----------------+-----+-------------------------------+
| 433-357-28CA   |  2  | Drill bit calibrated for      |
|                |     | cortical screws Ø3.5mm        |
+----------------+-----+-------------------------------+
| 433-357-20CA   |  2  | Drill bit calibrated for      |
|                |     | cortical screws Ø2.7mm        |
+----------------+-----+-------------------------------+
| 433-828-01     |  1  | Depth gauge for screws up     |
|                |     | to 60mm, for screws           |
|                |     | Ø2.7/3.5/4.0mm                |
+----------------+-----+-------------------------------+
| 433-890-35     |  1  | Universal drill guide for     |
|                |     | neutral and compression       |
|                |     | position, for tap Ø3.5mm      |
|                |     | and drill bit Ø2.5mm          |
+----------------+-----+-------------------------------+
| 433-629-27     |  1  | Screwdriver blades for        |
|                |     | locking screws Ø2.7/3.5mm     |
+----------------+-----+-------------------------------+
| 433-863-00     |  1  | Torque limiting attachment    |
|                |     | 1.5Nm with quick coupling     |
|                |     | for AO coupling               |
+----------------+-----+-------------------------------+
| 433-473-16     |  2  | Centering sleeve for          |
|                |     | Kirschner wires Ø1.6mm x      |
|                |     | 15.0cm                        |
+----------------+-----+-------------------------------+
| 433-476-28     |  2  | Threaded drill sleeve for     |
|                |     | Ø2.8mm drill bit              |
|                |     | 433-357-28CA                  |
+----------------+-----+-------------------------------+
| 433-476-20     |  2  | Threaded drill sleeve for     |
|                |     | Ø2.0mm drill bit              |
|                |     | 433-357-20CA                  |
+----------------+-----+-------------------------------+
| 433-473-00     |  1  | Direct measuring device for   |
|                |     | use with threaded drill       |
|                |     | sleeve Ø2.8mm / centering     |
|                |     | sleeve Ø1.6mm                 |
+----------------+-----+-------------------------------+
| 433-420-16     |  8  | Kirschner wire trocar point,  |
|                |     | round shaft Ø1.6mm x          |
|                |     | 15.0cm                        |
+----------------+-----+-------------------------------+
| 433-839-09     |  1  | Screw forceps                 |
+----------------+-----+-------------------------------+
| 436-645-00     |  4  | Titanium locking distance     |
|                |     | bolt Ø3.5mm                   |
+----------------+-----+-------------------------------+
| 436-646-00     |  4  | Titanium washer               |
+----------------+-----+-------------------------------+

Total: 21 items

---

Reference Numbers

Dimeda : 33.000.20, 33.625.35, 33.625.00, 33.866.00, 33.629.25, 33.822.20, 33.830.35, 33.356.25, 33.357.28CA, 33.357.20CA, 33.828.01, 33.890.35, 33.629.27, 33.863.00, 33.473.16, 33.476.28, 33.476.20, 33.473.00, 33.420.16, 33.839.09, 36.645.00, 36.646.00, 36.00.015

Note: Cross-reference numbers are provided for product identification and comparison purposes only.

---

Applications

• Small fragment fracture fixation

• Orthopedic trauma surgery

• Hand and foot fracture repair

• Radius and ulna fixation

• Small bone reconstruction procedures

• Plate and screw fixation surgeries

• General orthopedic implant applications

---

Sterilization

The implant components are supplied non-sterile and must be handled according to approved hospital sterilization and surgical preparation procedures. Reusable instruments should be sterilized before each surgical use.

---

Quality Assurance

Each Small Fragment Implants and Instruments Set undergoes:

• Titanium implant material verification

• Stainless steel instrument inspection

• Precision machining control

• Dimensional accuracy testing

• Thread and fixation component inspection

• Surface finish evaluation

• Corrosion resistance testing

• Final quality inspection before shipment

---

Warranty

AMAAX INTERNATIONAL provides a 3-Year Warranty against manufacturing defects under normal storage and handling conditions.

---

Packaging

• Medical-grade protective packaging

• Secure implant and instrument storage case

• Batch traceability labeling

• OEM and private label packaging available

---
