Mandibular Reconstruction Plates Standard Plates and Screws Set | AMAAX INTERNATIONAL – ISO 13485:2016

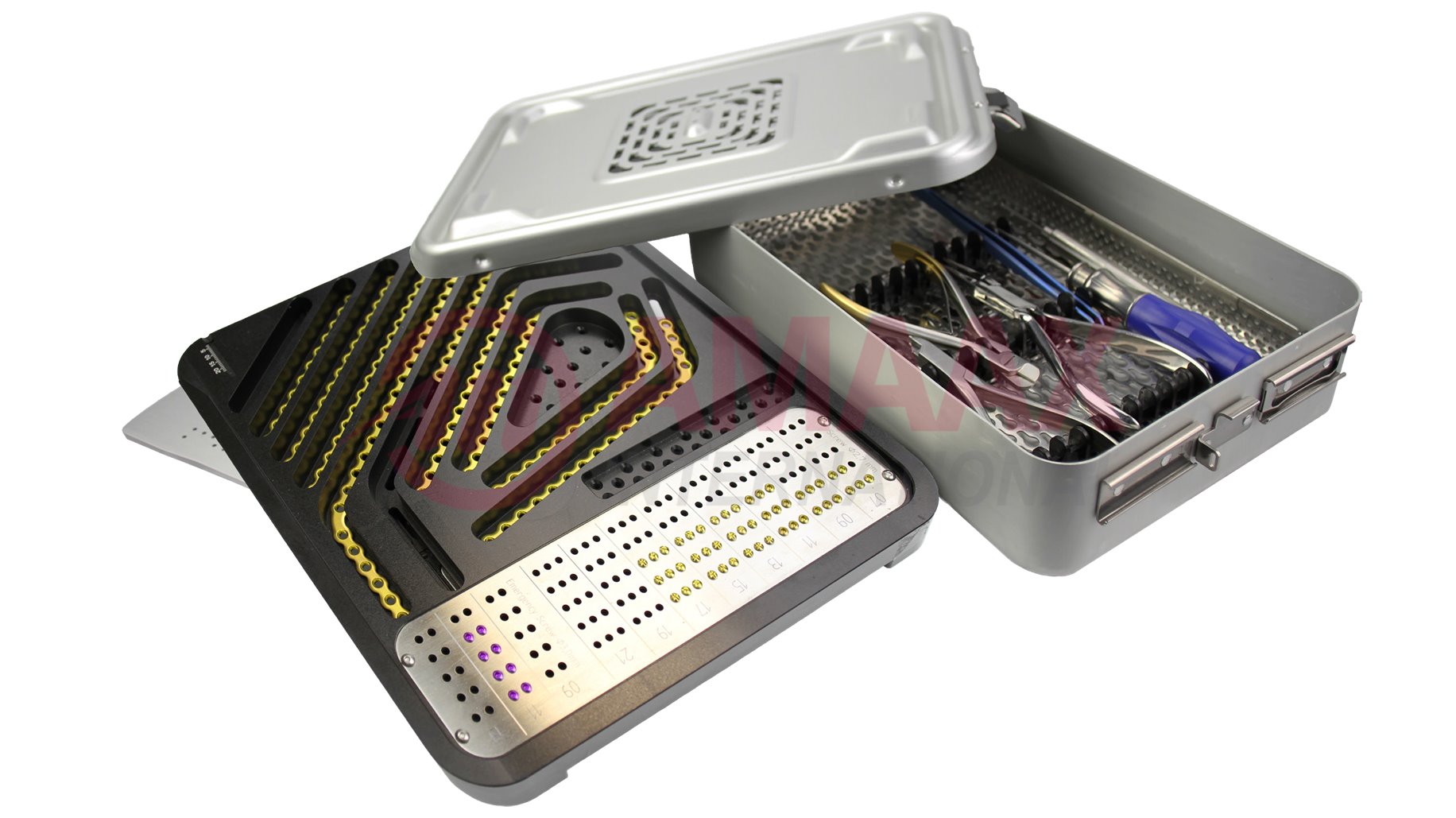

The Mandibular Reconstruction Plates Standard Plates and Screws Set is a comprehensive maxillofacial implant system designed for mandibular reconstruction, trauma repair, and corrective jaw surgery. The set contains precision-manufactured reconstruction plates and compatible screws organized in a sterilizable storage case, allowing surgeons to perform fixation procedures efficiently. Manufactured from Titanium, the system provides exceptional strength, biocompatibility, corrosion resistance, and long-term clinical reliability.
Key Features
- Complete mandibular reconstruction plate and screw set
- Standard reconstruction plates for mandibular fixation
- Precision-machined titanium implants
- High mechanical strength with excellent fatigue resistance
- Anatomically contoured plates for accurate adaptation
- Compatible reconstruction screws included
- Sterilizable instrument/storage case
- Corrosion-resistant and biocompatible
- Reusable storage system
- OEM and private label manufacturing available
Material
Titanium + German steel
General Size
┌──────────────────┬─────────────────────────────┐
│ Specification │ Details │
├──────────────────┼─────────────────────────────┤
│ Instrument Type │ Reconstruction Plate Set │
├──────────────────┼─────────────────────────────┤
│ Application │ Mandibular Reconstruction │
├──────────────────┼─────────────────────────────┤
│ Material │ Titanium │
├──────────────────┼─────────────────────────────┤
│ Reusable Case │ Yes │
└──────────────────┴─────────────────────────────┘
Package Includes
1 × Mandibular Reconstruction Plates Standard Plates and Screws Set
+------------+-----+--------------------------------------+
| Code | Qty | Description |
+------------+-----+--------------------------------------+
| 436-552-08 | 1 | Mandibular Reconstruction Plate, |
| | | Straight, 2.7mm Titanium, |
| | | 8 Holes, Profile 2.2mm |
+------------+-----+--------------------------------------+
| 436-552-14 | 1 | Mandibular Reconstruction Plate, |
| | | Straight, 2.7mm Titanium, |
| | | 14 Holes, Profile 2.2mm |
+------------+-----+--------------------------------------+
| 436-552-17 | 1 | Mandibular Reconstruction Plate, |
| | | Straight, 2.7mm Titanium, |
| | | 17 Holes, Profile 2.2mm |
+------------+-----+--------------------------------------+
| 436-553-11 | 1 | Lower Jaw Reconstruction Angle |
| | | Plate, 2.7mm Titanium, |
| | | 4-Holes Shaft, 11 Holes Head Left, |
| | | Profile 2.2mm |
+------------+-----+--------------------------------------+
| 436-553-14 | 1 | Lower Jaw Reconstruction Angle |
| | | Plate, 2.7mm Titanium, |
| | | 4-Holes Shaft, 14 Holes Head Left, |
| | | Profile 2.2mm |
+------------+-----+--------------------------------------+
| 436-555-11 | 1 | Lower Jaw Reconstruction Angle |
| | | Plate, 2.7mm Titanium, |
| | | 4-Holes Shaft, 11 Holes Head Right, |
| | | Profile 2.2mm |
+------------+-----+--------------------------------------+
| 436-555-14 | 1 | Lower Jaw Reconstruction Angle |
| | | Plate, 2.7mm Titanium, |
| | | 4-Holes Shaft, 14 Holes Head Right, |
| | | Profile 2.2mm |
+------------+-----+--------------------------------------+
| 436-560-19 | 1 | Lower Jaw Reconstruction Angle |
| | | Plate, 2.7mm Titanium, |
| | | 6 + 19 + 6 Holes |
+------------+-----+--------------------------------------+
| 436-561-17 | 1 | Lower Jaw Reconstruction Angle |
| | | Plate, 2.7mm Titanium, |
| | | 4 + 17 + 4 Holes |
+------------+-----+--------------------------------------+
| 436-591-07 | 10 | Mandibular Screw, Full Thread |
| | | Titanium, Ø2.7mm × 7.0mm, |
| | | Self-Tapping, Cross Recessed |
+------------+-----+--------------------------------------+
| 436-591-09 | 10 | Mandibular Screw, Full Thread |
| | | Titanium, Ø2.7mm × 9.0mm, |
| | | Self-Tapping, Cross Recessed |
+------------+-----+--------------------------------------+
| 436-591-11 | 10 | Mandibular Screw, Full Thread |
| | | Titanium, Ø2.7mm × 11.0mm, |
| | | Self-Tapping, Cross Recessed |
+------------+-----+--------------------------------------+
| 436-591-15 | 10 | Mandibular Screw, Full Thread |
| | | Titanium, Ø2.7mm × 15.0mm, |
| | | Self-Tapping, Cross Recessed |
+------------+-----+--------------------------------------+
| 436-591-17 | 10 | Mandibular Screw, Full Thread |
| | | Titanium, Ø2.7mm × 17.0mm, |
| | | Self-Tapping, Cross Recessed |
+------------+-----+--------------------------------------+
| 436-593-09 | 10 | Mandibular Emergency Screw, |
| | | Titanium, Ø3.0mm × 9.0mm, |
| | | Self-Tapping, Hexagonal |
+------------+-----+--------------------------------------+
| 436-593-11 | 10 | Mandibular Emergency Screw, |
| | | Titanium, Ø3.0mm × 11.0mm, |
| | | Self-Tapping, Hexagonal |
+------------+-----+--------------------------------------+
| 988-620-01 | 1 | Sterilization Container, |
| | | 310 × 190 × 65 mm |
+------------+-----+--------------------------------------+
| 436-950-20 | 1 | Rack for Instruments |
+------------+-----+--------------------------------------+
| 436-951-70 | 1 | Rack for Plates and Screws |
+------------+-----+--------------------------------------+
| 432-404-01 | 1 | STEINHAEUSER Bone Holding |
| | | Forceps, 13cm, Straight |
+------------+-----+--------------------------------------+
| 433-643-01 | 1 | Bending Iron, 14cm (5½"), Left, |
| | | for Bone Plates 2.7mm/3.5mm |
+------------+-----+--------------------------------------+
| 433-643-02 | 1 | Bending Iron, 14cm (5½"), Right, |
| | | for Bone Plates 2.7mm/3.5mm |
+------------+-----+--------------------------------------+
| 433-652-22 | 1 | Bending Pliers, 22.5cm (8"), |
| | | for Small Bone Plates |
| | | 2.7mm/3.5mm |
+------------+-----+--------------------------------------+
| 436-583-00 | 1 | Screwdriver Blade, 10cm, |
| | | Self-Retaining, Hexagon Coupling, |
| | | for Titanium Cross Head Screws |
| | | Ø2.7mm |
+------------+-----+--------------------------------------+
| 436-828-40 | 1 | Screw Driver Handle, 10cm (4"), |
| | | Turnable, Self-Retaining, |
| | | for 1.7mm–2.7mm Screwdriver Blades |
+------------+-----+--------------------------------------+
| 436-824-05 | 1 | Depth Gauge, 15cm (6"), |
| | | up to 50mm |
+------------+-----+--------------------------------------+
| 436-972-15 | 1 | Titanium Plates and Screws |
| | | Holding Forceps, 15cm (6"), |
| | | Angled |
+------------+-----+--------------------------------------+
Reference Code
┌───────────────────────┬─────────────────────────────────────────────────┐
│ Manufacturer │ Reference Code │
├───────────────────────┼─────────────────────────────────────────────────┤
│ AMAAX INTERNATIONAL │ 436-552-08, 436-552-14, 436-552-17 │
│ │ 436-553-11, 436-553-14, 436-555-11 │
│ │ 436-555-14, 436-560-19, 436-561-17 │
│ │ 436-591-07, 436-591-09, 436-591-11 │
│ │ 436-591-15, 436-591-17, 436-593-09 │
│ │ 436-593-11, 988-620-01, 436-950-20 │
│ │ 436-951-70, 432-404-01, 433-643-01 │
│ │ 433-643-02, 433-652-22, 436-583-00 │
│ │ 436-828-40, 436-824-05, 436-972-15,436-812-27 │
├───────────────────────┼─────────────────────────────────────────────────┤
│ Dimeda │ 36.552.08, 36.552.14, 36.552.17 │
│ │ 36.553.11, 36.553.14, 36.555.11 │
│ │ 36.555.14, 36.560.19, 36.561.17 │
│ │ 36.591.07, 36.591.09, 36.591.11 │
│ │ 36.591.15, 36.591.17, 36.593.09 │
│ │ 36.593.11, 88.620.01, 36.950.20 │
│ │ 36.951.70, 32.404.01, 33.643.01 │
│ │ 33.643.02, 33.652.22, 36.583.00 │
│ │ 36.828.40, 36.824.05, 36.972.15,36.812.27 │
└───────────────────────┴─────────────────────────────────────────────────┘
Applications
- Mandibular reconstruction surgery
- Maxillofacial trauma fixation
- Segmental mandibular defect reconstruction
- Tumor resection reconstruction
- Corrective jaw surgery
- Oral and maxillofacial surgical procedures
Sterilization
This implant set is supplied non-sterile and must be sterilized according to approved hospital sterilization procedures before clinical use.
Quality Assurance
Each Mandibular Reconstruction Plates Standard Plates and Screws Set undergoes:
- Titanium material verification
- CNC precision machining inspection
- Dimensional accuracy testing
- Surface finish inspection
- Corrosion resistance evaluation
- Compatibility verification
- Final quality inspection before shipment
Warranty
AMAAX INTERNATIONAL provides a 3-Year Warranty against manufacturing defects under normal storage and handling conditions.
Packaging
- Individually packed
- Medical-grade protective packaging
- Sterilizable storage case
- Batch traceability labeling
- OEM and private label packaging available
