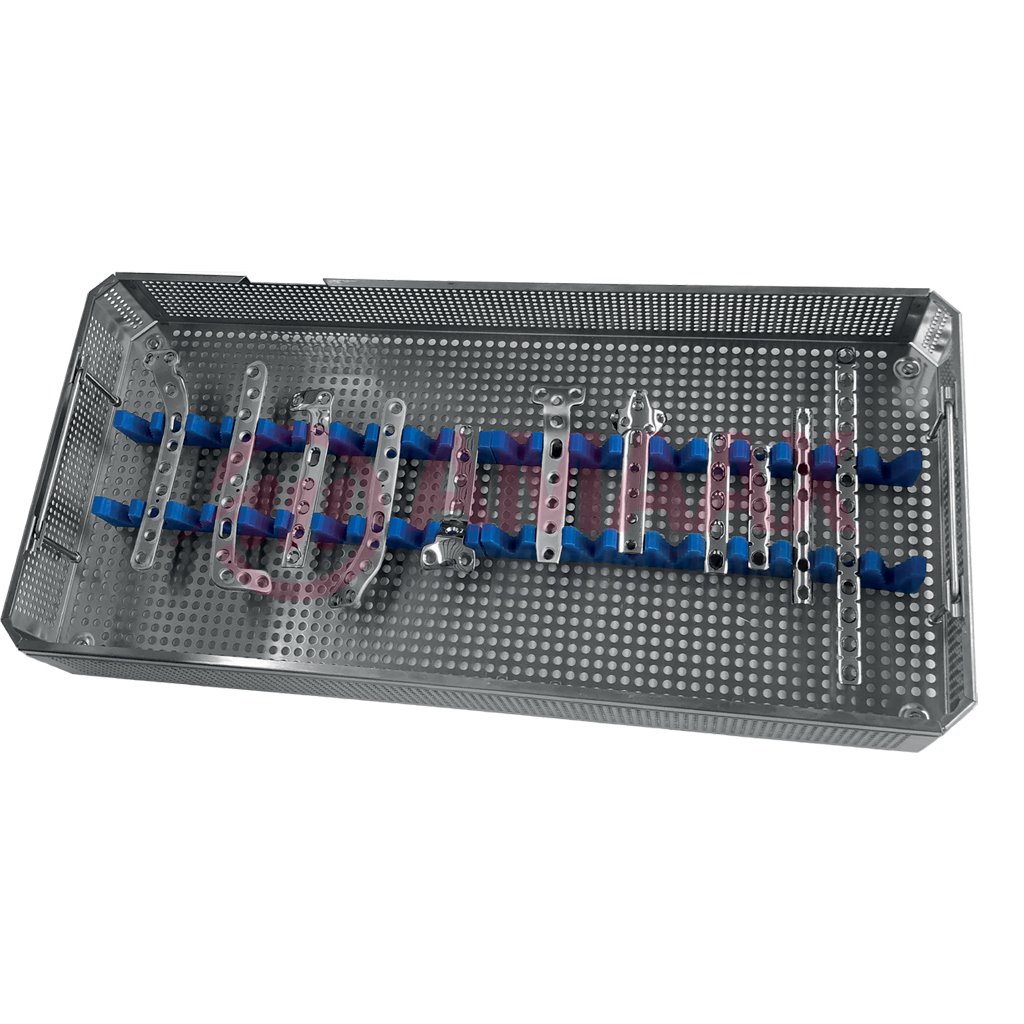

Large Fragment Plates Set

Large Fragment Plates Set | AMAAX INTERNATIONAL – ISO 13485:2016

The Large Fragment Plates Set is a comprehensive orthopedic implant system designed for the fixation and stabilization of large bone fractures. This set contains precision-manufactured plates used with large fragment screw systems for trauma and reconstructive orthopedic procedures. Manufactured from Titanium, these plates provide excellent biocompatibility, high mechanical strength, corrosion resistance, and reliable long-term fixation performance.

---

Key Features

• Complete large fragment orthopedic plate assortment
• Designed for fracture fixation and trauma surgery
• Compatible with large fragment screw systems
• Anatomically contoured plate designs for improved adaptation
• Precision-machined holes for accurate screw placement
• High strength and fatigue resistance
• Manufactured from Titanium
• Biocompatible and corrosion resistant
• Suitable for orthopedic implant procedures
• OEM and private label manufacturing available

---

Material

Titanium

---

Package Includes

1 × Large Fragment Plates Set

+------------+-----+--------------------------------------+
| Code       | Qty | Description                          |
+------------+-----+--------------------------------------+
| 433-000-62 |  1  | Tray                                 |
+------------+-----+--------------------------------------+
| 436-224-04 |  2  | DCP Compression Plate, 4.5mm Narrow, |
|            |     | 4 Holes, 71.0mm Long,                |
|            |     | Plate Thickness 4.0mm                |
+------------+-----+--------------------------------------+
| 436-224-05 |  2  | DCP Compression Plate, 4.5mm Narrow, |
|            |     | 5 Holes, 87.0mm Long,                |
|            |     | Plate Thickness 4.0mm                |
+------------+-----+--------------------------------------+
| 436-224-06 |  4  | DCP Compression Plate, 4.5mm Narrow, |
|            |     | 6 Holes, 103.0mm Long,               |
|            |     | Plate Thickness 4.0mm                |
+------------+-----+--------------------------------------+
| 436-224-07 |  2  | DCP Compression Plate, 4.5mm Narrow, |
|            |     | 7 Holes, 119.0mm Long,               |
|            |     | Plate Thickness 4.0mm                |
+------------+-----+--------------------------------------+
| 436-224-08 |  2  | DCP Compression Plate, 4.5mm Narrow, |
|            |     | 8 Holes, 135.0mm Long,               |
|            |     | Plate Thickness 4.0mm                |
+------------+-----+--------------------------------------+
| 436-224-09 |  2  | DCP Compression Plate, 4.5mm Narrow, |
|            |     | 9 Holes, 151.0mm Long,               |
|            |     | Plate Thickness 4.0mm                |
+------------+-----+--------------------------------------+
| 436-224-10 |  1  | DCP Compression Plate, 4.5mm Narrow, |
|            |     | 10 Holes, 167.0mm Long,              |
|            |     | Plate Thickness 4.0mm                |
+------------+-----+--------------------------------------+
| 436-224-12 |  1  | DCP Compression Plate, 4.5mm Narrow, |
|            |     | 12 Holes, 199.0mm Long,              |
|            |     | Plate Thickness 4.0mm                |
+------------+-----+--------------------------------------+
| 436-226-06 |  2  | DCP Compression Plate, 4.5mm Broad,  |
|            |     | 6 Holes, 103.0mm Long,               |
|            |     | Plate Thickness 4.0mm                |
+------------+-----+--------------------------------------+
| 436-226-07 |  2  | DCP Compression Plate, 4.5mm Broad,  |
|            |     | 7 Holes, 119.0mm Long,               |
|            |     | Plate Thickness 4.0mm                |
+------------+-----+--------------------------------------+
| 436-226-08 |  2  | DCP Compression Plate, 4.5mm Broad,  |
|            |     | 8 Holes, 135.0mm Long,               |
|            |     | Plate Thickness 4.0mm                |
+------------+-----+--------------------------------------+
| 436-226-09 |  1  | DCP Compression Plate, 4.5mm Broad,  |
|            |     | 9 Holes, 151.0mm Long,               |
|            |     | Plate Thickness 4.0mm                |
+------------+-----+--------------------------------------+
| 436-226-10 |  1  | DCP Compression Plate, 4.5mm Broad,  |
|            |     | 10 Holes, 167.0mm Long,              |
|            |     | Plate Thickness 4.0mm                |
+------------+-----+--------------------------------------+
| 436-226-11 |  1  | DCP Compression Plate, 4.5mm Broad,  |
|            |     | 11 Holes, 183.0mm Long,              |
|            |     | Plate Thickness 4.0mm                |
+------------+-----+--------------------------------------+
| 436-226-12 |  1  | DCP Compression Plate, 4.5mm Broad,  |
|            |     | 12 Holes, 199.0mm Long,              |
|            |     | Plate Thickness 4.0mm                |
+------------+-----+--------------------------------------+
| 436-226-14 |  1  | DCP Compression Plate, 4.5mm Broad,  |
|            |     | 14 Holes, 231.0mm Long,              |
|            |     | Plate Thickness 4.0mm                |
+------------+-----+--------------------------------------+
| 436-222-04 |  2  | Semi Tubular Plate, 4.5mm Straight,  |
|            |     | 4 Holes, 71.0mm Long,                |
|            |     | Plate Thickness 1.1mm                |
+------------+-----+--------------------------------------+
| 436-222-05 |  2  | Semi Tubular Plate, 4.5mm Straight,  |
|            |     | 5 Holes, 87.0mm Long,                |
|            |     | Plate Thickness 1.1mm                |
+------------+-----+--------------------------------------+
| 436-222-06 |  2  | Semi Tubular Plate, 4.5mm Straight,  |
|            |     | 6 Holes, 103.0mm Long,               |
|            |     | Plate Thickness 1.1mm                |
+------------+-----+--------------------------------------+
| 436-222-07 |  1  | Semi Tubular Plate, 4.5mm Straight,  |
|            |     | 7 Holes, 119.0mm Long,               |
|            |     | Plate Thickness 1.1mm                |
+------------+-----+--------------------------------------+
| 436-516-04 |  1  | T-Plate, 3.5mm Large,                |
|            |     | 4 Holes Shaft, 84.0mm Long,          |
|            |     | Plate Thickness 2.0mm                |
+------------+-----+--------------------------------------+
| 436-516-06 |  1  | T-Plate, 3.5mm Large,                |
|            |     | 6 Holes Shaft, 116.0mm Long,         |
|            |     | Plate Thickness 2.0mm                |
+------------+-----+--------------------------------------+
| 436-516-08 |  1  | T-Plate, 3.5mm Large,                |
|            |     | 8 Holes Shaft, 148.0mm Long,         |
|            |     | Plate Thickness 2.0mm                |
+------------+-----+--------------------------------------+
| 436-510-05 |  1  | Spoon Plate, 4.5mm, 5 Holes,         |
|            |     | 100.0mm Long, Head Width 34.0mm,     |
|            |     | Plate Thickness 2.0mm                |
+------------+-----+--------------------------------------+
| 436-512-06 |  1  | Spoon Plate, 4.5mm, 6 Holes,         |
|            |     | 120.0mm Long, Head Width 34.0mm,     |
|            |     | Plate Thickness 2.0mm                |
+------------+-----+--------------------------------------+
| 436-526-04 |  1  | T-Buttress Plate, 4.5mm,             |
|            |     | 4 Holes Shaft, 84.0mm Long,          |
|            |     | Plate Thickness 2.0mm                |
+------------+-----+--------------------------------------+
| 436-528-04 |  1  | L-Plate, 4.5mm, 4 Holes Shaft,       |
|            |     | 87.0mm Long, Right Angled,           |
|            |     | Plate Thickness 2.0mm                |
+------------+-----+--------------------------------------+
| 436-529-04 |  1  | L-Plate, 4.5mm, 4 Holes Shaft,       |
|            |     | 87.0mm Long, Left Angled,            |
|            |     | Plate Thickness 2.0mm                |
+------------+-----+--------------------------------------+

---

Reference Numbers

Dimeda : 33.000.62, 36.224.04, 36.224.05, 36.224.06, 36.224.07, 36.224.08, 36.224.09, 36.224.10, 36.224.12, 36.226.06, 36.226.07, 36.226.08, 36.226.09, 36.226.10, 36.226.11, 36.226.12, 36.226.14, 36.222.04, 36.222.05, 36.222.06, 36.222.07, 36.516.04, 36.516.06, 36.516.08, 36.510.05, 36.512.06, 36.526.04, 36.528.04, 36.529.04, 36.00.052

Note: Cross-reference numbers are provided for product identification and comparison purposes only.

Applications

• Large fragment fracture fixation
• Orthopedic trauma surgery
• Long bone fracture reconstruction
• Femur fixation procedures
• Tibia fracture fixation
• Humerus reconstruction
• Plate and screw fixation procedures

Sterilization

This implant set is supplied non-sterile and must be sterilized according to approved hospital sterilization procedures before surgical use.

Quality Assurance

Each Large Fragment Plates Set undergoes:

• Titanium material verification
• Precision CNC machining inspection
• Dimensional accuracy testing
• Hole positioning inspection
• Surface finish evaluation
• Corrosion resistance testing
• Final quality inspection before shipment

Warranty

AMAAX INTERNATIONAL provides a 3-Year Warranty against manufacturing defects under normal storage and handling conditions.

Packaging

• Medical-grade protective packaging
• Secure implant storage box
• Batch traceability labeling
• OEM and private label packaging available
