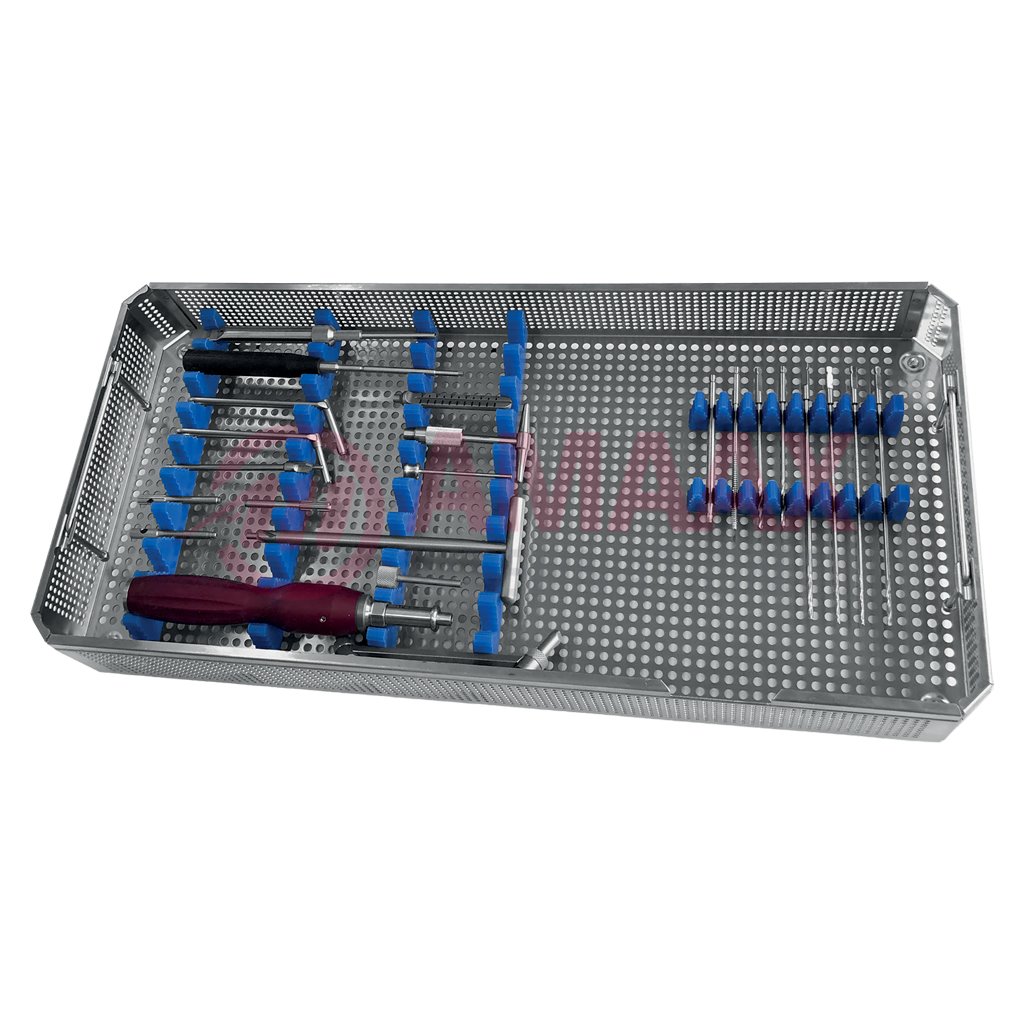

The Large Fragment Instruments Set is a complete orthopedic surgical instrument system designed for large fragment fracture fixation procedures. This set provides essential instruments required for drilling, measuring, reduction, screw insertion, and plate fixation during trauma and reconstructive orthopedic surgeries. Manufactured from AISI 420 German Stainless Steel, the instruments offer excellent strength, corrosion resistance, precision, and reliable reusable performance.

---

Key Features

• Complete large fragment orthopedic instrument system
• Designed for trauma and fracture fixation procedures
• Suitable for large fragment plate and screw applications
• Precision instruments for drilling, reduction, and fixation
• Ergonomic design for improved surgical control
• High strength and durable construction
• Manufactured from AISI 420 German Stainless Steel
• Fully autoclavable and reusable
• Reliable performance in orthopedic procedures
• OEM and private label manufacturing available

---

Material

AISI 420 German Stainless Steel

---

Package Includes

1 × Large Fragment Instruments Set

+-------------+-----+-------------------------------+
| Code        | Qty | Description                   |
+-------------+-----+-------------------------------+
| 433-356-32  |  1  | Drill bit for cortical        |
|             |     | screws Ø4.5mm                 |
+-------------+-----+-------------------------------+
| 433-356-35  |  2  | Drill bit for sliding hole,   |
|             |     | Ø4.5mm                        |
+-------------+-----+-------------------------------+
| 433-826-45  |  2  | Countersink with T-handle     |
|             |     | 18cm/7", for Ø4.5/6.5mm       |
|             |     | screws                        |
+-------------+-----+-------------------------------+
| 433-832-45  |  1  | Tap 12.5cm/5", AO-shaft,      |
|             |     | large thread, for cortical    |
|             |     | screws Ø4.5mm, pitch 1.75mm   |
+-------------+-----+-------------------------------+
| 433-874-45  |  1  | Insert drill sleeve 5cm/2",   |
|             |     | outside-Ø4.5mm, for drill     |
|             |     | bit Ø3.2mm                    |
+-------------+-----+-------------------------------+
| 433-866-00  |  1  | T-handle 8.5cm/3¼" for        |
|             |     | AO-attachment with quick      |
|             |     | coupling                      |
+-------------+-----+-------------------------------+
| 433-885-35  |  1  | Protection sleeve 11cm (4     |
|             |     | 1/4"), Ø3.5mm, for Ø3.2mm     |
|             |     | drill bit and Ø2.7/3.5mm tap  |
+-------------+-----+-------------------------------+
| 433-629-35  |  1  | Screwdriver blade 10cm/4",    |
|             |     | hexagonal 3.5mm, AO-shaft,    |
|             |     | for 4.5/6.5mm screws          |
+-------------+-----+-------------------------------+
| 433-630-35  |  1  | Screwdriver 20cm/8",          |
|             |     | hexagonal 3.5mm for holding   |
|             |     | sleeve, for Ø4.5/5.0mm        |
|             |     | screws                        |
+-------------+-----+-------------------------------+
| 433-630-36  |  1  | Holding sleeve for            |
|             |     | screwdriver                   |
+-------------+-----+-------------------------------+
| 433-889-45  |  1  | Protection sleeve 11cm (4     |
|             |     | 1/4"), Ø4.5mm, for Ø4.5mm     |
|             |     | drill bit and Ø4.5mm tap      |
+-------------+-----+-------------------------------+
| 433-829-01  |  1  | Depth gauge 28.0cm/11", w/    |
|             |     | protection sleeve, up to      |
|             |     | 110.0mm, for 4.5/5.0/6.5mm    |
+-------------+-----+-------------------------------+
| 433-420-20  | 10  | KIRSCHNER wire 19cm (7        |
|             |     | 1/2"), Ø2.0mm, trocar         |
|             |     | point, round shaft            |
+-------------+-----+-------------------------------+
| 433-357-43CA|  2  | Drill bit calibrated for      |
|             |     | cortical screws Ø5.0mm        |
+-------------+-----+-------------------------------+
| 433-476-43  |  2  | Threaded drill sleeve         |
|             |     | 6cm/½", Ø4.3mm, for drill     |
|             |     | bit 433-357-43CA              |
+-------------+-----+-------------------------------+
| 433-473-20  |  2  | Centering sleeve 7cm/2¾",     |
|             |     | Ø2.0mm, for K-wire            |
|             |     | Ø2.0x190mm                    |
+-------------+-----+-------------------------------+
| 433-474-00  |  1  | Direct measuring device       |
|             |     | 12cm/4¾", for Kirschner       |
|             |     | wires Ø2.0mm                  |
+-------------+-----+-------------------------------+
| 433-863-25  |  1  | Torque limiting attachment    |
|             |     | 20cm/8" for AO-attachment,    |
|             |     | with quick coupling, 2.5Nm    |
+-------------+-----+-------------------------------+

Total: 18 items

---

Reference Numbers

Dimeda : 33.356.32, 33.356.35, 33.826.45, 33.832.45, 33.874.45, 33.866.00, 33.885.35, 33.629.35, 33.630.35, 33.630.36, 33.889.45, 33.829.01, 33.420.20, 33.357.43CA, 33.476.43, 33.473.20, 33.474.00, 33.863.25, 36.00.024 Note: Cross-reference numbers are provided for product identification and comparison purposes only.

---

Applications

• Large fragment fracture fixation
• Orthopedic trauma surgery
• Long bone fracture procedures
• Femur and tibia fixation
• Plate and screw implantation
• Bone reconstruction procedures
• General orthopedic surgery

---

Sterilization

This instrument set is supplied non-sterile and must be sterilized according to approved hospital sterilization procedures before surgical use.

---

Quality Assurance

Each Large Fragment Instruments Set undergoes:

• Raw material verification
• Precision machining inspection
• Dimensional accuracy testing
• Functional performance testing
• Surface finish evaluation
• Corrosion resistance testing
• Final quality inspection before shipment

---

Warranty

AMAAX INTERNATIONAL provides a 3-Year Warranty against manufacturing defects under normal storage and handling conditions.

---

Packaging

• Medical-grade protective packaging
• Sterilizable instrument storage case
• Batch traceability labeling
• OEM and private label packaging available

---
