Large Fragment Instruments Set | AMAAX INTERNATIONAL – ISO 13485:2016

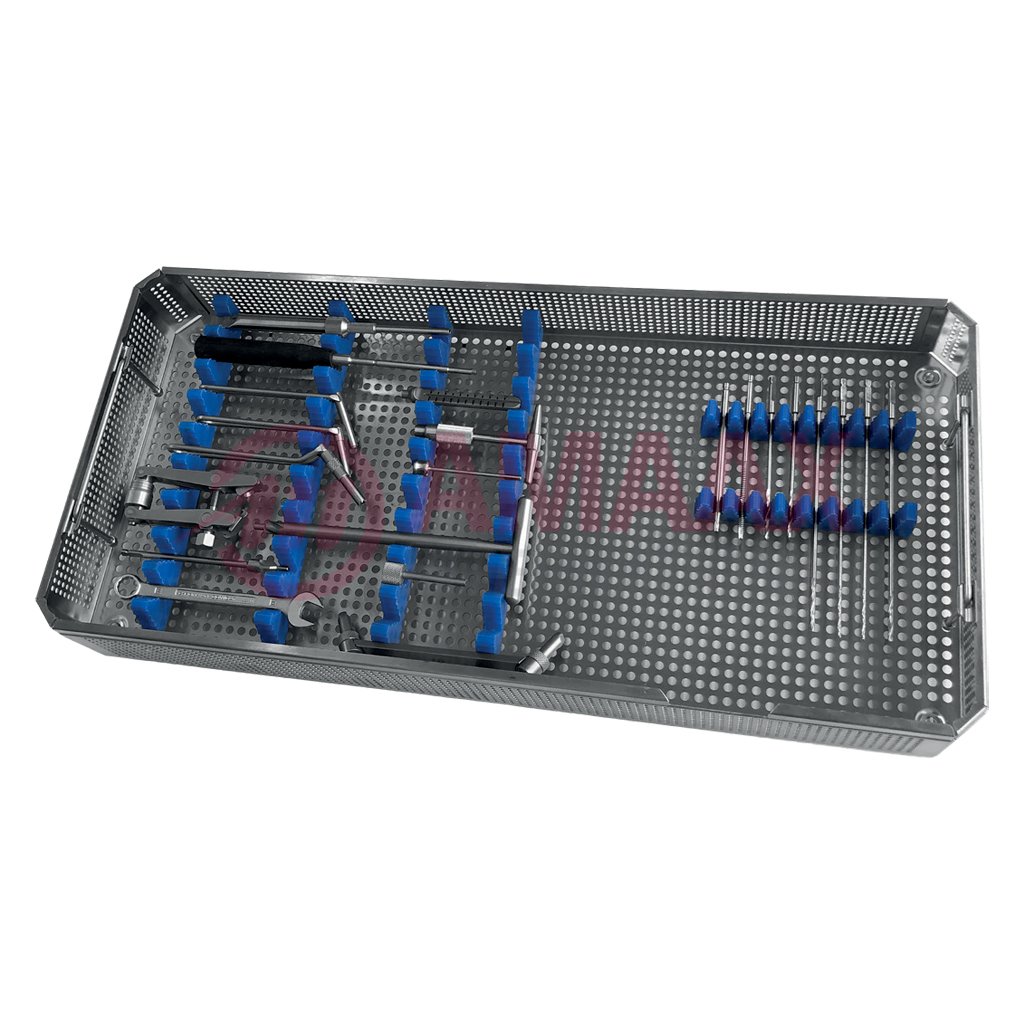

The Large Fragment Instruments Set is a comprehensive orthopedic instrument system designed for large fragment fracture fixation procedures. It contains the essential instruments required for drilling, tapping, reduction, screw insertion, and plate fixation when using 4.5 mm Cortex and 6.5 mm Cancellous screw systems. Manufactured from AISI 420 German Stainless Steel, the set provides excellent durability, corrosion resistance, and long-term surgical performance. Typical large fragment sets include drill guides, drill bits, taps, depth gauges, reduction forceps, screwdrivers, countersinks, retractors, and other fixation instruments supplied in a sterilizable storage case.
Key Features
-
Complete orthopedic large fragment instrument set
-
Designed for trauma and fracture fixation procedures
-
Compatible with 4.5 mm Cortex and 6.5 mm Cancellous systems
-
Precision-machined instruments for accurate fixation
-
Ergonomic design for comfortable handling
-
Corrosion-resistant and reusable
-
Manufactured from AISI 420 German Stainless Steel
-
Fully autoclavable
-
OEM and private label manufacturing available
Material
AISI 420 German Stainless Steel
General Size
┌────────────────────┬─────────────────────────────────────┐
│ Specification │ Details │
├────────────────────┼─────────────────────────────────────┤
│ Instrument Type │ Large Fragment Instruments Set │
├────────────────────┼─────────────────────────────────────┤
│ Application │ Orthopedic Trauma Surgery │
├────────────────────┼─────────────────────────────────────┤
│ Material │ AISI 420 German Stainless Steel │
├────────────────────┼─────────────────────────────────────┤
│ Reusable │ Yes │
└────────────────────┴─────────────────────────────────────┘
Package Includes
1 × Large Fragment Instruments Set
+------------+-----+--------------------------------------+
| Code | Qty | Item |
+------------+-----+--------------------------------------+
| 433-628-35 | 1 | Screwdriver, 25.0 cm, Hexagonal |
| | | 3.5 mm, for Holding Sleeve, |
| | | used for Ø4.5/6.5 mm Screws |
+------------+-----+--------------------------------------+
| 433-866-00 | 1 | T Handle, 8.5 cm, for AO Coupling, |
| | | with Quick Coupling |
+------------+-----+--------------------------------------+
| 433-629-35 | 1 | Screwdriver Blade, 10.0 cm, |
| | | Hexagonal 3.5 mm, AO Shaft, |
| | | used for Ø4.5/5.0 mm Screws |
+------------+-----+--------------------------------------+
| 433-830-65 | 1 | Tap Ø6.5 mm, 20.0 cm Long, |
| | | Pitch 2.75 mm |
+------------+-----+--------------------------------------+
| 433-832-45 | 2 | Tap, Long Thread, 125.0 mm, |
| | | AO Shaft, for Cortical |
| | | Screws Ø4.5 mm |
+------------+-----+--------------------------------------+
| 433-824-32 | 1 | Countersink, 12.0 cm, Ø3.2 mm, |
| | | AO Shaft, for Ø4.5 mm |
| | | Cortical Screws |
+------------+-----+--------------------------------------+
| 433-826-45 | 1 | Countersink, with T Handle, |
| | | 18.0 cm |
+------------+-----+--------------------------------------+
| 433-356-32 | 3 | Drill Bit Ø3.2 mm, AO Shaft, |
| | | Total Length 145.0 mm, |
| | | Twist Length 48.0 mm, |
| | | Useable Length 120.0 mm |
+------------+-----+--------------------------------------+
| 433-356-45 | 2 | Drill Bit Ø4.5 mm, AO Shaft, |
| | | Total Length 145.0 mm, |
| | | Twist Length 50.0 mm, |
| | | Useable Length 120.0 mm |
+------------+-----+--------------------------------------+
| 433-874-45 | 1 | Insert Drill Sleeve, 5.0 cm, |
| | | Ø4.5 mm, Applicable for |
| | | Ø3.2 mm Drill Bit |
+------------+-----+--------------------------------------+
| 433-885-35 | 1 | Protection Sleeve, 11.0 cm, |
| | | Ø3.5 mm, for Ø3.2 mm |
| | | Drill Bit & Ø3.5 mm Tap |
+------------+-----+--------------------------------------+
| 433-889-45 | 1 | Protection Sleeve, 11.0 cm, |
| | | Ø4.5 mm, for Ø4.5 mm |
| | | Drill Bit & Ø4.5 mm Tap |
+------------+-----+--------------------------------------+
| 434-105-40 | 1 | Drill Guide for Round-Hole |
| | | Plates, 11.5 cm, Ø3.2 mm, |
| | | for Ø3.2 mm Drill Bit |
+------------+-----+--------------------------------------+
| 434-127-45 | 1 | Drill Guide, 40.0 mm, |
| | | Neutral / Eccentric, |
| | | 16.5 cm |
+------------+-----+--------------------------------------+
| 434-115-11 | 1 | Cardanic Wrench, 18.5 cm, |
| | | Width Across Flats 11.0 mm, |
| | | for 434-111-16 |
+------------+-----+--------------------------------------+
| 434-116-11 | 1 | Wrench, 15.0 cm, |
| | | Width Across Flats 11.0 mm |
+------------+-----+--------------------------------------+
| 433-674-09 | 1 | Bending Template, |
| | | 5 Hole, 90.0 mm |
+------------+-----+--------------------------------------+
| 433-674-12 | 1 | Bending Template, |
| | | 7 Hole, 120.0 mm |
+------------+-----+--------------------------------------+
| 433-674-15 | 1 | Bending Template, |
| | | 9 Hole, 150.0 mm |
+------------+-----+--------------------------------------+
| 433-829-01 | 1 | Depth Gauge, 28.0 cm, |
| | | with Protection Sleeve, |
| | | up to 110.0 mm, for |
| | | 4.5/5.0/6.5 mm Screws |
+------------+-----+--------------------------------------+
| 433-839-09 | 1 | Screw Forceps, 8.0 cm, |
| | | Self-Holding, for |
| | | Ø3.5–6.5 mm Screws |
+------------+-----+--------------------------------------+
| 433-842-39 | 1 | Hook, 16.0 cm, Sharp |
+------------+-----+--------------------------------------+
| 436-219-99 | 1 | Washer, Outside Ø13.0 mm, |
| | | Inside Ø6.8 mm, for |
| | | Cancellous Screws Ø6.5 mm |
+------------+-----+--------------------------------------+
| 434-111-16 | 1 | Tension Device, 9.0 cm, |
| | | Span 20.0 mm |
+------------+-----+--------------------------------------+
Reference Numbers
┌───────────────────────┬─────────────────────────────────────────────────┐
│ Manufacturer │ Reference Code │
├───────────────────────┼─────────────────────────────────────────────────┤
│ AMAAX INTERNATIONAL │ 433-628-35, 433-866-00, 433-629-35 │
│ │ 433-830-65, 433-832-45, 433-824-32 │
│ │ 433-826-45, 433-356-32, 433-356-45 │
│ │ 433-874-45, 433-885-35, 433-889-45 │
│ │ 434-105-40, 434-127-45, 434-115-11 │
│ │ 434-116-11, 433-674-09, 433-674-12 │
│ │ 433-674-15, 433-829-01, 433-839-09 │
│ │ 433-842-39, 436-219-99, 434-111-16, 436-00-054 │
├───────────────────────┼─────────────────────────────────────────────────┤
│ Dimeda │ 33.628.35, 33.866.00, 33.629.35 │
│ │ 33.830.65, 33.832.45, 33.824.32 │
│ │ 33.826.45, 33.356.32, 33.356.45 │
│ │ 33.874.45, 33.885.35, 33.889.45 │
│ │ 34.105.40, 34.127.45, 34.115.11 │
│ │ 34.116.11, 33.674.09, 33.674.12 │
│ │ 33.674.15, 33.829.01, 33.839.09 │
│ │ 33.842.39, 36.219.99, 34.111.16, 36.00.054 │
└───────────────────────┴─────────────────────────────────────────────────┘
Cross-reference numbers are provided for product identification and comparison purposes only.
Applications
-
Large fragment fracture fixation
-
Orthopedic trauma surgery
-
Plate and screw fixation procedures
-
Femur fracture surgery
-
Tibia fracture surgery
-
Humerus fracture fixation
-
General orthopedic reconstruction
Sterilization
This instrument set is supplied non-sterile and must be sterilized according to approved hospital sterilization procedures before surgical use.
Quality Assurance
Each Large Fragment Instruments Set undergoes:
-
Raw material verification
-
Precision machining inspection
-
Dimensional accuracy inspection
-
Surface finish evaluation
-
Corrosion resistance testing
-
Functional testing
-
Final quality inspection before shipment
Warranty
AMAAX INTERNATIONAL provides a 3-Year Warranty against manufacturing defects under normal storage and handling conditions.
Packaging
-
Individually packed
-
Medical-grade protective packaging
-
Sterilizable instrument storage case
-
Batch traceability labeling
-
OEM and private label packaging available
