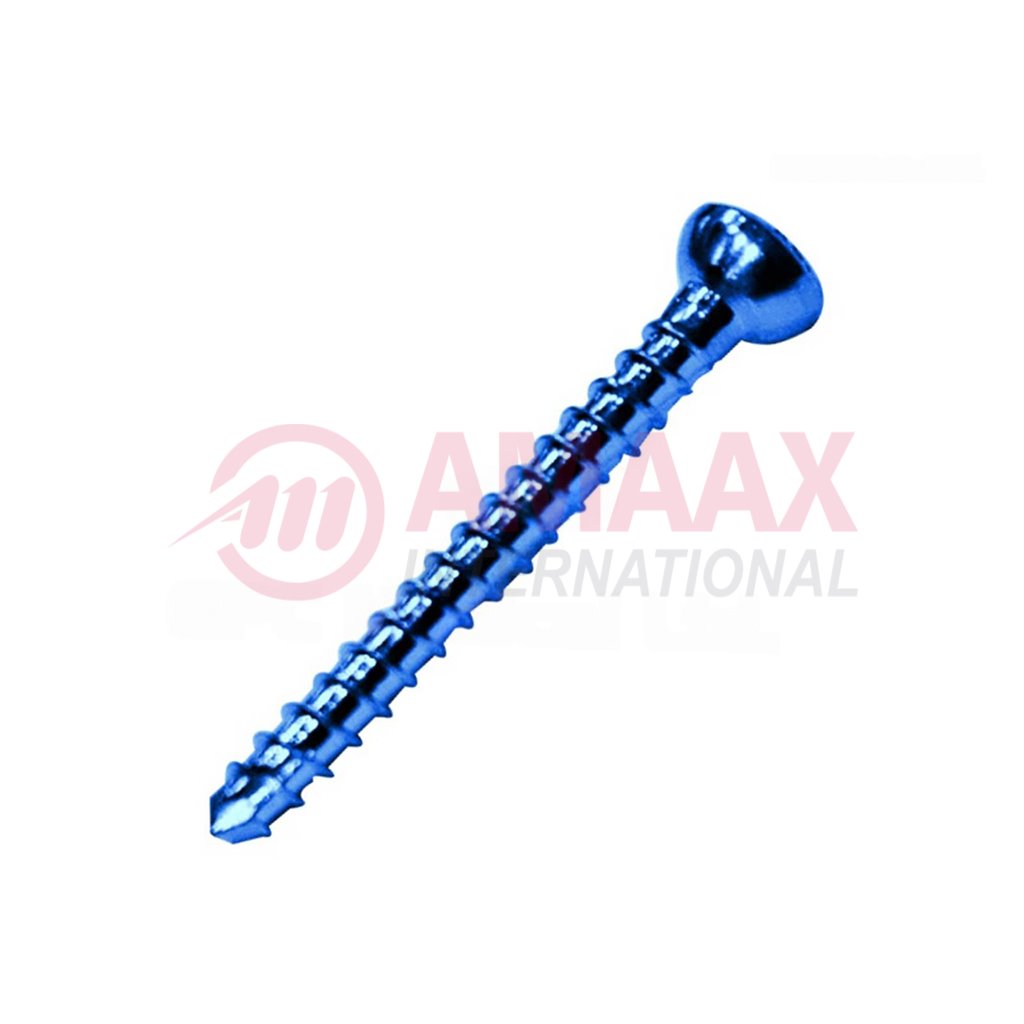

Locking Screws, Titanium

Locking Screws | AMAAX INTERNATIONAL – ISO 13485:2016

The Locking Screws are precision-engineered orthopedic implants designed to provide secure fixation with compatible locking plates and intramedullary nail systems. Manufactured from Titanium, these screws offer exceptional biocompatibility, high mechanical strength, excellent corrosion resistance, and long-term clinical reliability. Their precision-machined threaded design ensures stable angular fixation, making them ideal for orthopedic trauma and reconstructive procedures.

---

Key Features

• Precision locking screws for orthopedic fixation
• Manufactured from high-quality Titanium
• Available in 3.4 mm, 4.9 mm, and 5.0 mm diameters
• Length options from 20 mm to 70 mm
• Precision-machined locking threads
• Excellent angular stability with compatible locking plates
• High fatigue strength and corrosion resistance
• Smooth surface finish for easy insertion
• Compatible with standard orthopedic instrumentation
• OEM and private label manufacturing available

---

Material

Titanium

---

General Size

Diameter: 3.4 mm
Lengths: 20 mm, 34 mm, 36 mm, 38 mm, 40 mm, 42 mm

Diameter: 4.9 mm
Lengths: 30 mm, 35 mm, 40 mm, 45 mm, 50 mm

Diameter: 5.0 mm
Lengths: 30 mm, 35 mm, 40 mm, 45 mm, 50 mm, 55 mm, 60 mm, 65 mm, 70 mm

---

Package Includes

1 × Locking Screw

---

Reference Numbers

Amaax International : 435-611-20, 435-611-34, 435-611-36, 435-611-38, 435-611-40, 435-611-42, 435-620-30, 435-620-35, 435-620-40, 435-620-45, 435-620-50, 435-620-55, 435-620-60, 435-620-65, 435-620-70, 435-621-30, 435-621-35, 435-621-40, 435-621-45, 435-621-50

Dimeda : 35.611.20, 35.611.34, 35.611.36, 35.611.38, 35.611.40, 35.611.42, 35.620.30, 35.620.35, 35.620.40, 35.620.45, 35.620.50, 35.620.55, 35.620.60, 35.620.65, 35.620.70, 35.621.30, 35.621.35, 35.621.40, 35.621.45, 35.621.50

Note: Cross-reference numbers are provided for product identification and comparison purposes only.

---

Applications

• Locking plate fixation
• Orthopedic trauma surgery
• Fracture stabilization
• Long bone fracture fixation
• Upper and lower extremity reconstruction
• Revision orthopedic procedures
• Hospital and orthopedic surgical centers

---

Sterilization

This implant is supplied non-sterile and must be sterilized according to approved hospital sterilization procedures before surgical use.

---

Quality Assurance

Each Locking Screw undergoes strict quality control including:

• Raw material verification
• Precision CNC machining inspection
• Thread accuracy testing
• Surface finish evaluation
• Mechanical strength testing
• Corrosion resistance inspection
• Final quality inspection before shipment

---

Warranty

AMAAX INTERNATIONAL provides a 3-Year Warranty against manufacturing defects under normal storage and handling conditions.

---

Packaging

• Individually packed
• Medical-grade protective packaging
• Batch traceability labeling
• OEM and private label packaging available

---
